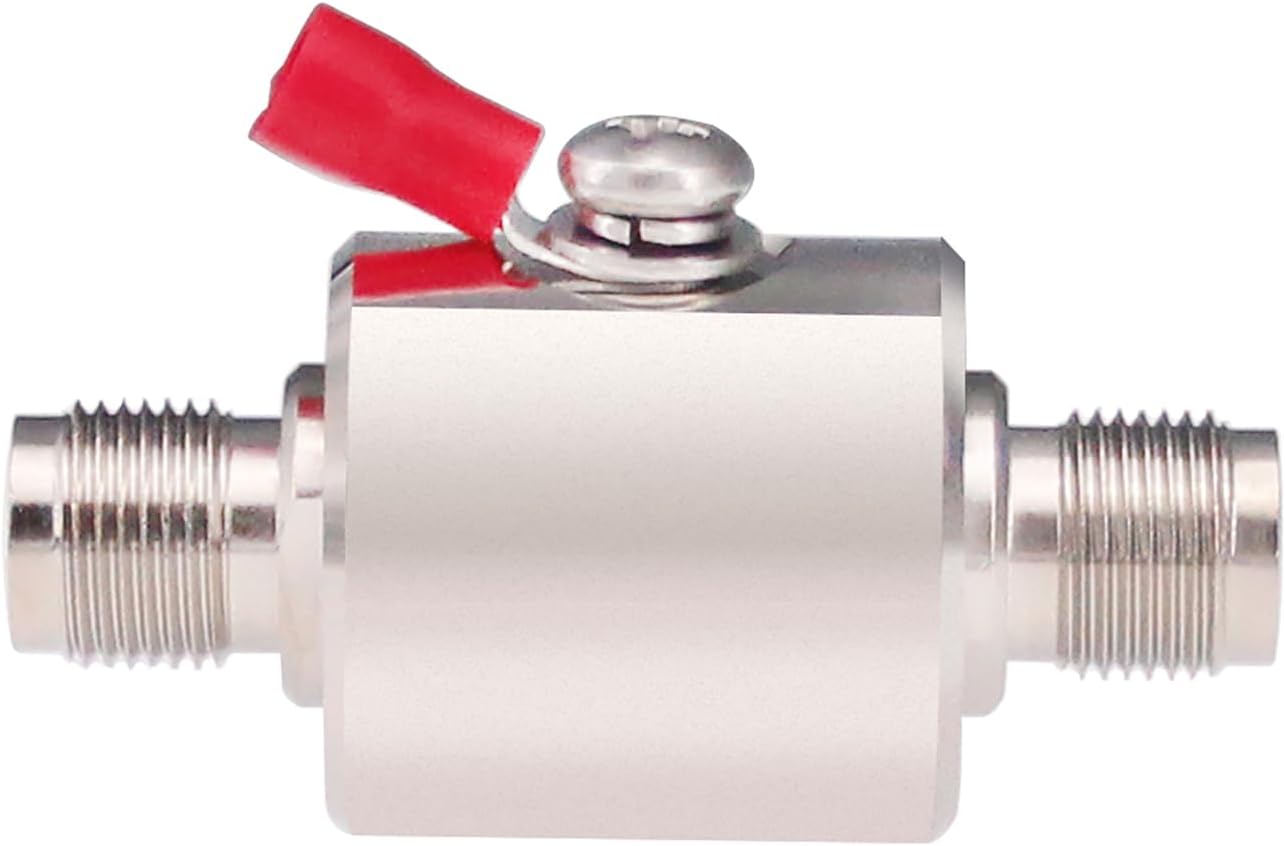

1pc Coaxial Lightning Arrestor TNC Lighting Protection Device TNC Female to Female Connector DC-3Ghz 50 Ohms(L03)
Product details
| Management number | 239195975 | Release Date | 2026/07/14 | List Price | US$5.60 | Model Number | 239195975 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
It has standard 50 Ohm with TNC-Female to TNC-Female coaxial connectors. It is a coaxial TNC Surge Protector, operates over the frequency range of 0-3 GHz. Designed to be placed between amplifier and outside antenna cable connection, need to be grounded. (DC Pass) Protect your amplifier and boosted devices from power surges typically caused by lightning strikes to outdoor antennas. Material: Body: brass nickel plated Pin: Body brass gold plated Insulator: Teflon(PTFE) Specifications: Connectors: TNC Female to TNC Female Impedance: 50 ohm, specifically for 50 ohm systems VSWR: ≤1.2 Insertion Loss: ≤0.3dB Frequency Range: DC - 3 GHz Temperature range: -50°C to +155 °C Insulation Resistance: ≥ 5000MΩ Durability: ≥ 500 cycles Contact Resistance: Center conductor ≤ 1.5mΩ, Outer conductor ≤ 1mΩ Package Include: 1pc TNC Female to Female Lightning Arrestor surge protector
- Lightning Arrestor TNC Female to TNC Female Connectors
- Low Loss and VSWR and 50 Ohms Impedance
- Operating Frequency DC-3 GHz, DC Pass for Remote Powering
- Protect your amplifier system from lightning strikes by installing lightning arrestor between amplifier and outdoor antenna
- Used for CCTV camera, video system, Ham radio gear, CB antenna, two-way radio, scanners and more
| ASIN | B0C9GT1552 |
|---|---|
| Brand | Yuelulala |
| Color | Silver |
| Plug Type | Type A |
| Manufacturer | Yuelulala |
| Number of Ports | 1 |
| Power Plug Type | Type A - 2 pin (North American) |
| Number of Outlets | 3 |
| Warranty Description | no |
| Other Special Features of the Product | Surge Protection |
